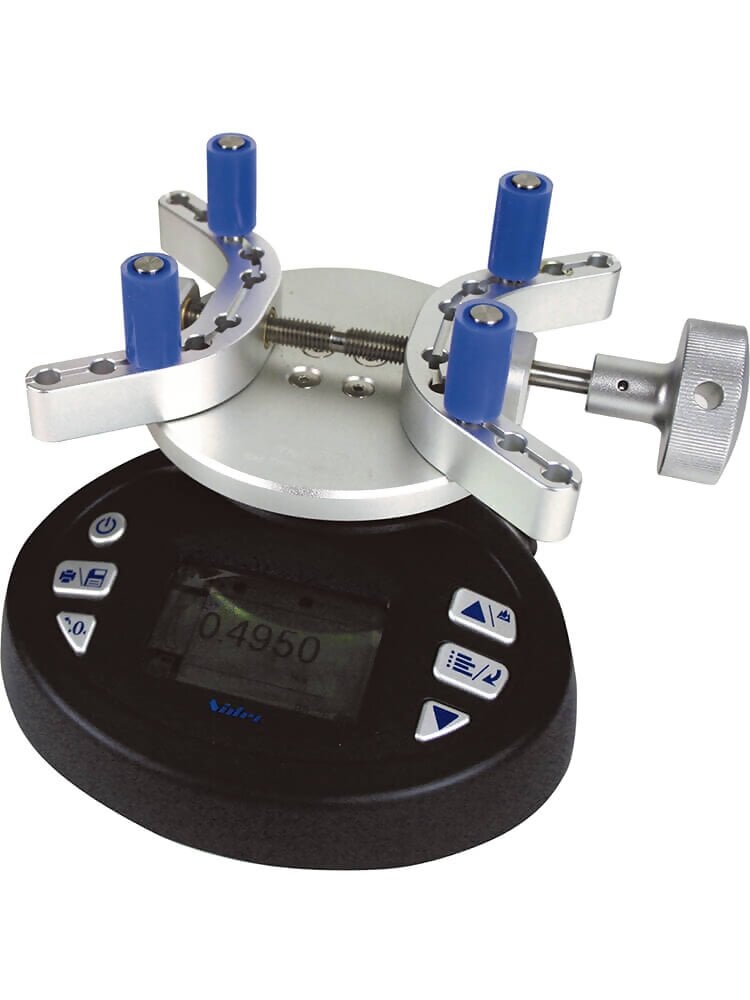

Shimpo TNC Series Torque Cap Tester
Precise 0.3% of reading accuracy ensures exact results
Quick & Easy set up with removable chuck pins and size adjustment knob enables testing of samples with diameters from 0.77" (19.5 mm) up to 7.48" (190 mm).
The Shimpo TNC Series Digital Torque Cap Tester is a simple operation test instrument for quickly measuring Open and Close torque values up to 14.8 ft-lbs (20 N-m) on a wide range of test samples with diameters ranging from 0.77" (19.5 mm) to 7.48" (190 mm). The TNC meter is used in medical, pharmaceutical, industrial quality control, R&D and countless other torque applications. The Shimpo TNC Series Digital Torque Cap Tester provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The Shimpo TNC Series Digital Torque Cap Tester have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for a quick pass/fail test is available in all modes.
Please click on the links below for additional information on the models available for this product:
| Models Available |
Price |
|
|
|
1,740.00 |
 |
|
|
1,500.00 |
|
|
|
2,010.00 |
|
|
|
1,530.00 |
|
|
