AWS CAP-QC-100z Small Cap & Vial Torque Tester, 100 oz-in Capacity



Price: $ 1,695.00

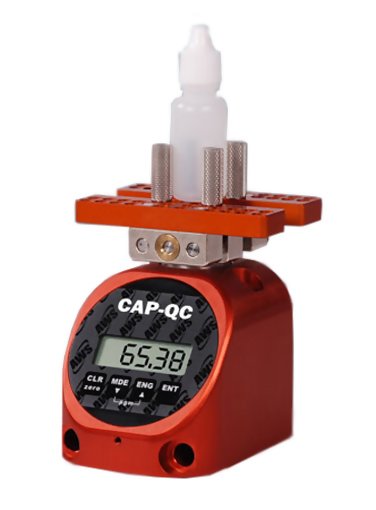

AWS CAP-QC Vial Cap Torque Tester
Capacites up to: 200 Oz-in / 12.50 in-lb / 140 N-cm
Made in the USA

Diameters:0.2" up to 3.5" (5.1 - 89.0 mm)

The AWS CAP-QC Small Cap & Vial Torque Tester is designed for measuring open and closure torque on small diameter bottles and vials used in the pharmaceutical and cosmetic industry. Compact, light weight aluminum housing with internal rechargeable battery makes for ease of transport so the CAP-QC can be used anywhere from the lab to the production line. Intuitive menu system allows the user to quickly select measuring units and operation mode. Peak mode holds max open or close torque on the display until it is reset for the next test.

Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types from 0.2" up to 3.5" (5.1 - 89.0 mm) including vials, drams, lipstick & perfume packages as well as many other samples.


line
Features
line

  • Bidirectional accuracy of 1% of indicated reading
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak and 1st Peak
  • Rugged Aluminum construction
  • NiMH rechargeable batteries provide 8-10 hours of continuoususe. Supplied with AC-Adapter/Charger
  • Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types (G1058-25M)
  • Includes NIST-Traceable Calibration Certificate


line
Specifications
line

Calibrated Range10-100% Full Scale, bi-directional
Accuracy1% of indicated (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak
Memorydata storage of up to 999 readings
Data OutputRS-232, Single Value, no continuous output
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerInternal NiMH battery, 9V Charger (included)
Weight3lbs
Operating Temp32 - 120 F (0-50 C)
Warranty1 Year
Attachment Part NumberG1058-25M
Calibration CertificateIncludes NIST Traceable calibration certificate with data


line
Force Ranges
line

ModelCapacity
CAP-QC-50z50 Oz-in | 3.12 in-lb | 35 N-cm
CAP-QC-100z100 Oz-in | 6.25 in-lb | 70 N-cm
CAP-QC-200z200 Oz-in | 12.50 in-lb | 140 N-cm
CAP-QC-25i25 in-lb | 282 N-cm | 2.82 Nm

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
AWS CAP-QC-100z Small Cap & Vial Torque Tester, 100 oz-in Capacity $1,695.00
Accessories Price
TT-QC-MK Mounting kit for TT-QC, includes two 5.5" bolts (3/8" Diameter) 2 Wing Nuts and washers for Mounting on a table 1.1" - 2.25" Thick $14.95
ISO-17025-CT ISO-17025 Calibration & Certification for Cap Torque Tester $325.00
TT-QC-CC Waterproof Carrying Case for TT-QC $125.00
TTS-SOFT Torque To Spreadsheet Basic Data Transfer Software, Includes Mini Plug to USB Cable $165.00
SMD-SC Torque Tester Software, For Data Analysis and Collection, includes Mini Plug to USB Cable $275.00
