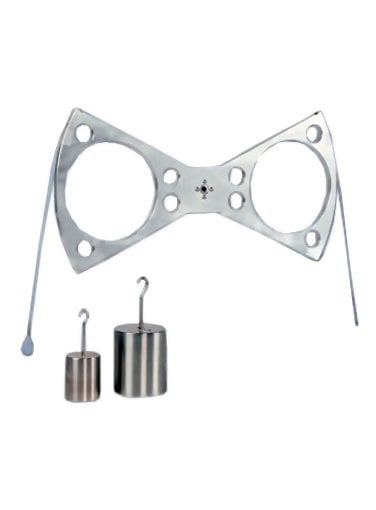

The Imada SBK-492 Calibration Fixture for DTX2 Cap Torque Tester is a precision calibration fixture for the DTX2 Cap Torque Tester, allowing you to test and recalibrate in-house.Requiresa precision weight set, refer to table below for required weights. (must be purchased from alternate vendor).
Photo Gallery

Specifications
| Model | DTX / DTX2-15 | DTX / DTX2-40 | DTX / DTX2-85 |
|---|
| Capacity (kgf-cm) | 20.00 | 50.00 | 100.0 |
|---|
| Allowable Range (kgf-cm) | 19.90 ~ 0.10 | 49.75 ~ 50.25 | 99.5 ~ 100.5 |
|---|
| Allowable Tolerance (kgf-cm) | 0.10 | 0.25 | 0.5 |
|---|
| *Weight (kg) | 1 | 2.5 | 5 |
|---|
*Weight is appropriate for 20 cm radius calibration arm
